STRONG - PE-pipes for sewage and drainage

STRONG Standard septic tank sizes

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

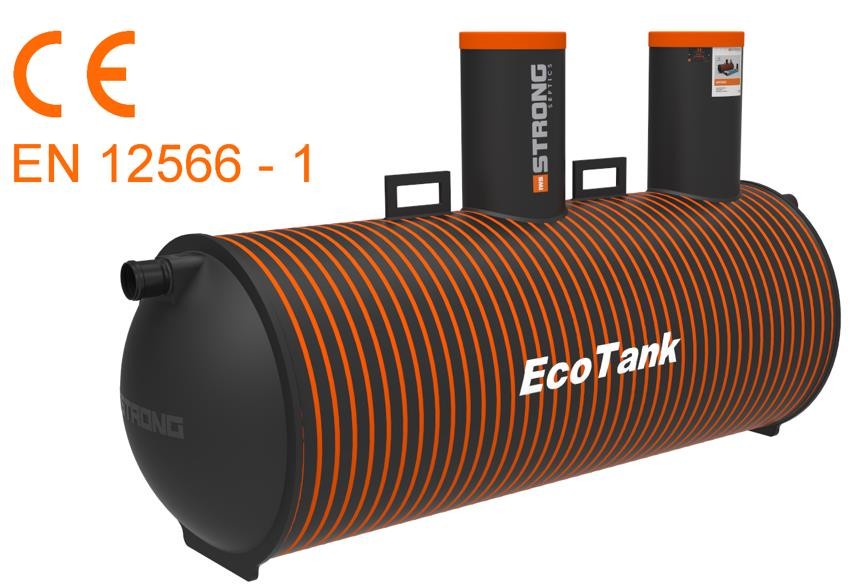

Septic tank with 3 chambers, CE-certified

STRONG: Double-walled body (PE-pipes)

strong-sakosailio-2000l2000 l dimensions 1000 x 2800 mm (low model)

  • Inlet and outlet connections 110 mm
  • Emptying 2 x 400 mm
  • Anchoring lines 2 pc
  • Warranty 20 years

REQUEST AN OFFER

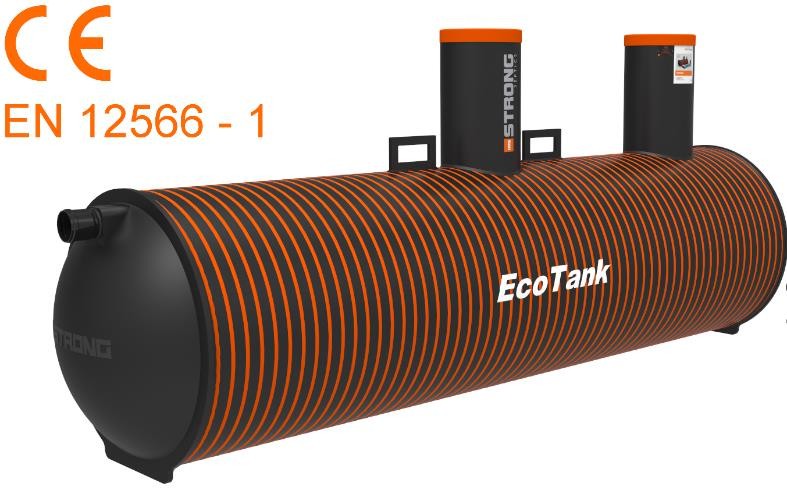

Septic tank with 3 chambers, CE-certified

STRONG: Double-walled body (PE-pipes)

strong-sakosailio-3000l3000 l dimensions 1000 x 4100 mm (low model)

  • Inlet and outlet connections 110 mm
  • Emptying 2 x 400 mm
  • Anchoring lines 4 pc
  • Warranty 20 years

REQUEST AN OFFER

Septic tank with 3 chambers, CE-certified

STRONG: Double-walled body (PE-pipes)

strong-sakosailio-5000l5000 l dimensions 1000 x 6650 mm (low model)

  • Inlet and outlet connections 110 mm
  • Emptying 2 x 400 mm
  • Anchoring lines 4 pc
  • Warranty 20 years

REQUEST AN OFFER

Filtration pipes package for absorption system

  • distribution well 400 mm x 1200 m
  • filtration pipes 110 mm x 30 m
  • ramifications (förgreningar) 110 mm 90º 4 pc
  • ventilation pipes 110 mm x 1,5 m 2 pc
  • ventilation pipe covers 110 mm 2 pc
  • filtering cloth 1 x 33 m
  • distribution pipes 110 mm x 2,5 m 2 pc

REQUEST AN OFFER

Filtration and collection pipes package for soil filtration system 30 m

  • distribution well 400 x 1200 m
  • filtration pipes 110 mm x 30 m
  • ramifications (förgreningar) 110 mm 90º 4 pc
  • ventilation pipes 110 mm x 1,5 m 2 pc
  • ventilation pipe covers 110 mm 2 pc
  • filtering cloth 1 x 33 m
  • distribution pipes 110 mm x 2,5 m 2 pc

Collection pipes with control well

  • Control well 400 x 2200 mm
  • Collection pipes 110 mm x 30 m
  • ramifications (förgreningar) 110 mm 90º 4 pc
  • ventilation pipes 110 mm x 1,5 m 2 pc
  • ventilation pipe covers 110 mm 2 pc
  • pipe system for control well 110 mm x 2,5 m 2 pc

REQUEST AN OFFER

STRONG Standard sewage tank sizes

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

Sewage tank

STRONG: double-walled body (PE-pipes)

lokasailio2000l2000 l dimensions 1000 x 2800 mm (low model)

  • Inlet connection 110 mm
  • Emptying hole 200 mm
  • Anchoring lines 2 pc
  • Warranty 20 years
  • Wireless water level watcher (additional equipment)

REQUEST AN OFFER

Sewage tank

STRONG: double-walled body (PE-pipes)

lokasailio3000l3000 l dimensions 1000 x 4100 mm (low model)

  • Inlet connection 110 mm
  • Emptying hole 200 mm
  • Anchoring lines 4 pc
  • Warranty 20 years
  • Wireless water level watcher (additional equipment)

REQUEST AN OFFER

Sewage tank

STRONG: double-walled body (PE-pipes)

lokasailio5000l5000 l dimensions 1000 x 6650 mm (low model)

  • Inlet connection 110 mm
  • Emptying hole 200 mm
  • Anchoring lines 4 pc
  • Warranty 20 years
  • Wireless water level watcher (additional equipment)

REQUEST AN OFFER

Sewage tank

STRONG: double-walled body (PE-pipes)

lokasailio5000l 25000 l dimensions 1600 x 2900 mm

  • Inlet connection 110 mm
  • Emptying hole 400 mm
  • Anchoring lines 4 pc
  • Warranty 20 years
  • Wireless water level watcher (additional equipment)

REQUEST AN OFFER

Sewage tank

STRONG: double-walled body (PE-pipes)

lokasailio6000l6000 l dimensions 1600 x 3400 mm

  • Inlet connection 110 mm
  • Emptying hole 400 mm
  • Anchoring lines 4 pc
  • Warranty 20 years
  • Wireless water level watcher (additional equipment)

REQUEST AN OFFER

Sewage tank

STRONG: double-walled body (PE-pipes)

lokasailio8000l8000 l dimensions 1600 x 4400 mm

  • Inlet connection 110 mm
  • Emptying hole 400 mm
  • Anchoring lines 4 pc
  • Warranty 20 years
  • Wireless water level watcher (additional equipment)

REQUEST AN OFFER

Sewage tank

STRONG: double-walled body (PE-pipes)

lokasailio10000l10000 l dimensions 1600 x 5400 mm

  • Inlet connection 110 mm
  • Emptying hole 400 mm
  • Anchoring lines 4 pc
  • Warranty 20 years
  • Wireless water level watcher (additional equipment)

REQUEST AN OFFER

Sewage tank

STRONG: double-walled body (PE-pipes)

lokasailio12000l12000 l dimensions 1600 x 6300 mm

  • Inlet connection 110 mm
  • Emptying hole 400 mm
  • Anchoring lines 4 pc
  • Warranty 20 years
  • Wireless water level watcher (additional equipment)

REQUEST AN OFFER



Water tanks

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

water tank 1

REQUEST AN OFFER

Food grade water tanks manufactured in HDPE (high density polyethylene) for drinking water

EcoTank is one of the few suppliers who can provide high quality water tanks that are approved for drinking water.

Our water tanks in food grade quality can be manufactured in volumes 2m³–80m³ with a diameter between 1000–2400 mm. They can be manufactured with feet so that they can be placed above or underground.

Our water tanks are made in HDPE-plastic (high density polyethylene) with double walls for extra durability and have a strength classification of SN2-SN8.

Each water tank is produced according to customer’s needs regarding dimensions and intended use.

We provide a two-year warranty, depending on the application area, and certificates are always included upon delivery.

Our factory has been awarded the ISO 9001 standard quality assurance for our products.

Our offer comes with a technical drawing where the client can make changes if needed.

water tank 2water3

PE-pipes for sewage, rainwater and ducts

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

 pe rör

REQUEST AN OFFER

Plastic HDPE pipes for different uses

We produce double-walled PE-pipes for sewage, rainwater and ducts. Strong PE-pipes are manufactured in different stiffness classes to be adapted according to use. The tubes have inner diameter from 500 mm to 2400 mm.

Inner dimensions Ringstiffness (kN/m³)
1000 mm SN2, SN4, SN8, SN16
1200 mm SN2, SN4, SN8, SN16
1400 mm SN2, SN4, SN8, SN16
1600 mm SN2, SN4, SN8
2000 mm SN2, SN4, SN8
2400 mm SN2, SN4

We can produce up to 13,2 m long pipes.

RunkojaykkyystestiPossible additions to pipes:

  • PE-welding
  • RST-connector
  • Welding by hand
  • Heatable tape

Each part is tested for strength and durability.

Pipe stiffness test DIN EN ISO 9969 (plastic pipes – rigidity test). See picture->

Properties of STRONG pipes and raw materials:

Properties Unit Size Standard
Density kg/m³ >930 ISO 1183
Elasticity N/mm² 800-900 ISO 527
Heat dispersion mm/m ºC 0,18
Ringstiffness  kN/m²  2 - 16 ISO 9969
Thermal conductivity  W/m ºC  0,40
Highest heat  ºC  max +45 Long-term
Highest heat  ºC  max +80 Short-term

pe rör 1pe rör 2

Chemical tanks

Star InactiveStar InactiveStar InactiveStar InactiveStar Inactive

kemikalietankar

REQUEST AN OFFER

Specially made HDPE (high density polyethylene) chemical tanks intended for industrial use

STRONG PE-chemical tanks are used in industry for transport and storage of chemicals, for example, in sewage treatment plants. Our tanks are used for several different purposes in the chemical industry.

We offer tanks from 1 m³ to 80 m³ with diameters between 1000-2400 mm. The tanks can be horizontal or vertical. The material is PE-plastic. Our PE-plastic tanks have double walls for extra durability and strength classification of SN2-SN8.

We provide the tanks with a two-year warranty depending on the area of use. Certificates are included with delivery. Our factory has been awarded the ISO 9001 standard quality assurance for our products.

Need custom-made tanks, pools or silos? Our engineers create 3D designs according to customer’s requirements.

References:

  • Metsä Board OYJ / Simpele paper factory
  • Sybimar Oy / Uusikaupunki / Fish tank
  • Biolinja Oy / Uusikaupunki / Biogas scrubber
  • VG-Shipping Oy / Uusikaupunki / Grease separator
  • Econet Oy / Aulanko waterworks / Chemical tanks
  • Finnish Defence Forces / Säkylä garrison / Chemical tank / Pumping station
  • Sarlin Oy / Ämmänsuo waste treatment plants / Lye tank with heating

kemikalietankar 1kemikalietankar 2kemikalietankar 5

kemikalietankar 3 kemikalietankar 4
